Product Description

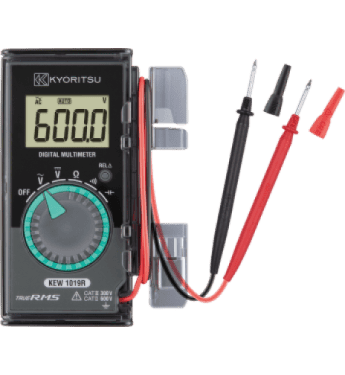

The Digital Multimeter 600V RMS 1019R by Kyoritsu is a versatile and reliable instrument designed for precise electrical testing and measurement tasks. With its True RMS capabilities, it provides accurate readings for both AC and DC voltage up to 600V, as well as current, resistance, and other essential electrical parameters.

Features:

  • True RMS Measurements
  • Sturdy test leads
  • Smart structure hard case
  • DCV, ACV, Ω, Capacitance Measurement
  • Complies with IEC 61010-1 CAT Ⅲ 300V / CAT Ⅱ 600V
  • Large display
  • Simple range composition
DC V 600.0mV/6.000/60.00/600.0V (Input impedance: approx. 10MΩ)
±0.8%rdg ±5dgt (600.0mV/6.000/60.00V)
±1.0%rdg ±5dgt (600.0V)
AC V 6.000/60.00/600.0V (Input impedance: approx. 10MΩ)
±1.3%rdg±5dgt (6.000/60.00V) (50/60Hz)
±1.7%rdg±5dgt (6.000/60.00V) (45 - 500Hz)
±1.6%rdg±5dgt (600.0V) (50/60Hz)
±2.0%rdg±5dgt (600.0V) (45 - 500Hz)
Ω 600.0Ω/6.000/60.00/600.0kΩ/6.000/40.00MΩ
±1.0%rdg±5dgt (600.0Ω/6.000/60.00/600.0kΩ/6.000MΩ)
±2.5%rdg±5dgt (40.00MΩ)
Continuity buzzer 600.0Ω (Buzzer threshold value 60Ω or less)
Capacitance 6.000/60.00/600.0nF/6.000/60.00/600.0µF
±3.5%rdg±50dgt (6.000nF)
±3.5%rdg±10dgt (60.00nF)
±3.5%rdg±5dgt (600.0nF/6.000/60.00µF)
±4.5%rdg±5dgt (600.0µF)
Applicable standards IEC 61010-1 CAT III 300V / CAT II 600V Pollution degree 2
IEC 61010-2-033, IEC 61010-031, IEC 61326-2-2
Power source CR2032 (3V) × 1
Approx. 120 hours, Auto power save: Approx: 15 minutes
Dimension 126(L) × 85(W) × 18(D)mm
Weight Approx. 135g (including hard case, battery)
Accessories 9188 (Hard case), CR2032 × 1, Instruction manual


The Kyoritsu Digital Multimeter 600V RMS 1019R is an essential tool for electricians, technicians, and professionals who require accurate and reliable measurements in various electrical systems.
