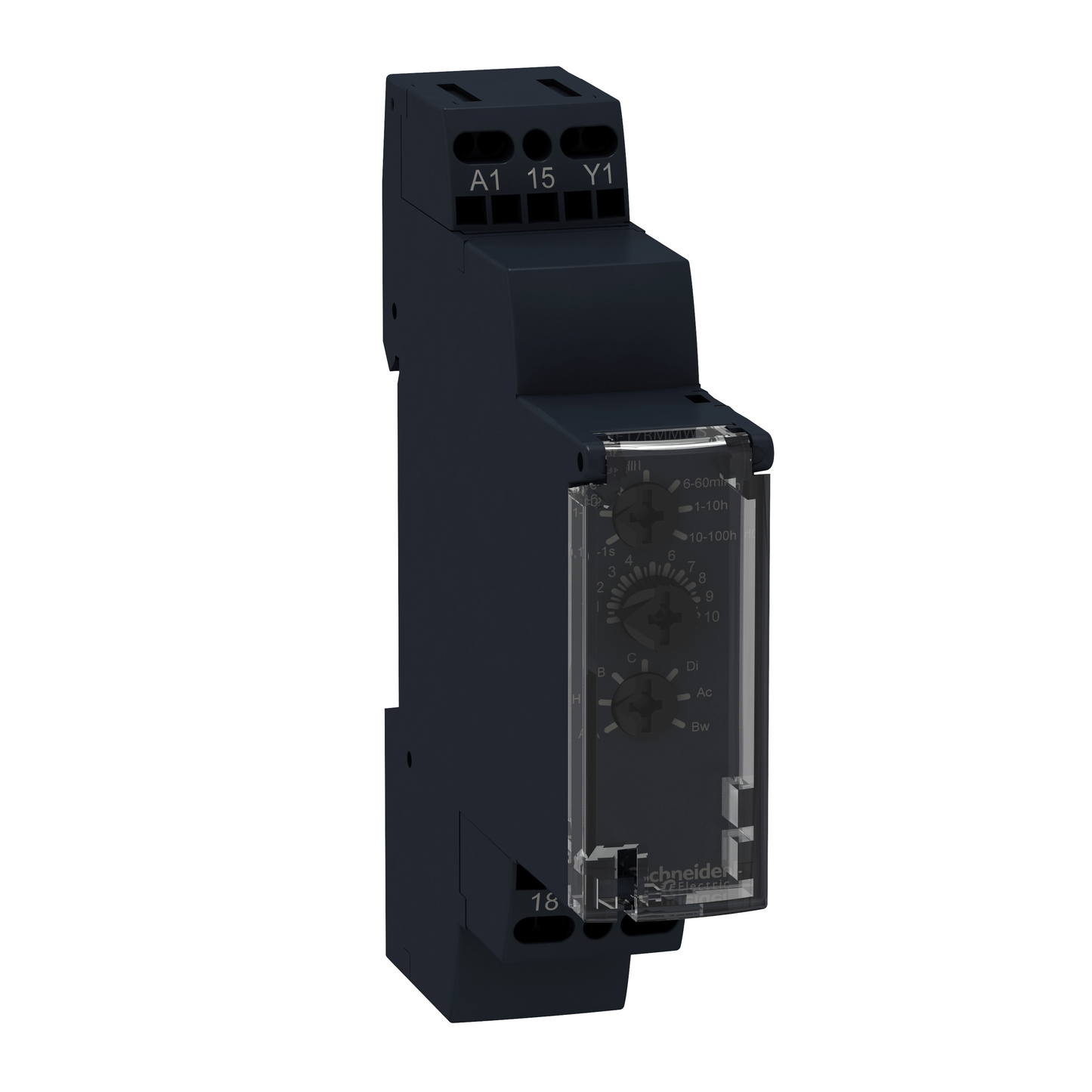

Schneider Harmony Timer Relay

The Schneider Harmony Timer Relay offers a versatile and reliable timing solution for a wide range of industrial and commercial applications. With its extensive time delay options and robust construction, this timer relay is designed to meet diverse control needs effectively.

Product Description:

The Schneider Harmony Timer Relay operates across a broad supply voltage range of 12-240V AC/DC at 50/60Hz, making it suitable for various global standards. It features a rated output current of 8A and a single Change-Over (C/O) contact, providing flexible control options. The relay includes a comprehensive time delay range from 0.1 seconds to 100 hours, allowing for precise adjustment according to specific operational requirements. It supports several time delay types, including Power on-delay, On-delay and off-delay, Interval, Off-delay, and Symmetrical flashing, enabling it to cater to various application scenarios. The relay is equipped with a front panel selector switch for straightforward control and adjustments. For easy integration into standard electrical panels, it is designed for mounting on a 35mm DIN rail.

Key Features:

• Product Type: Timer Relay
• Model: Harmony
• Rated Supply Voltage: 12-240V AC/DC at 50/60Hz
• Rated Output Current: 8A
• Output Type: 1 Change-Over (C/O) contact
• Time Delay Range:
  • 0.1-1 second
  • 1-10 seconds
  • 6-60 seconds
  • 1-10 minutes
  • 6-60 minutes
  • 1-10 hours
  • 10-100 hours
• Time Delay Types: Power on-delay, On-delay and off-delay, Interval, Off-delay, Symmetrical flashing
• Control Type: Selector switch on the front panel
• Mounting: 35mm DIN rail

Applications:

The Harmony Timer Relay is ideal for various applications, including:

• Automation Systems: For precise timing in automated manufacturing and process control.
• HVAC Controls: Managing timing functions for heating, ventilation, and air conditioning systems.
• Lighting Control: Regulating lighting sequences and time-based lighting operations.
• Safety Systems: Implementing delay functions in alarm systems and emergency controls.

Advantages:

• Versatility: Wide supply voltage range ensures compatibility with diverse electrical systems.
• Comprehensive Timing Options: Multiple time delay settings cater to a broad range of operational needs.
• User-Friendly: Front panel selector switch allows for simple operation and adjustments.
• Convenient Installation: DIN rail mounting facilitates easy integration into existing electrical panels.

The Schneider Harmony Timer Relay is a dependable choice for achieving accurate and versatile timing control, enhancing the efficiency and reliability of various electrical and automation systems.
