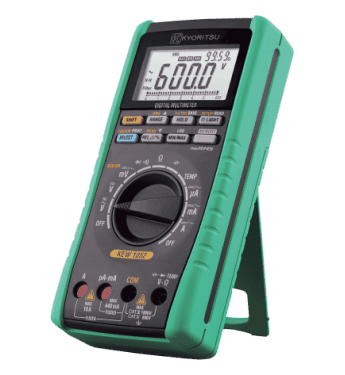

Kyoritsu Digital Multimeter 1000V High Accuracy - 1052

Available:

In stock

Vendor:KYORITSU

SKU: 1052

Category: Best Selling Products, Best selling products, Multimeters, New products, Newest Products, Protections and Switchgear

Tags: MultiMeters

Regular price KSh64,399.00 Sale

Quantity:

- +

Add To Wishlist

The Digital Multimeter 1000V High Accuracy 1052 by Kyoritsu is a professional-grade instrument designed for precise electrical testing and measurement. With its high-accuracy measurements and advanced features, it is suitable for a wide range of applications, including industrial maintenance, electrical troubleshooting, and laboratory use.

Features:

0.09% basic DC accuracy
Large display with 6,000 counts
True-RMS Measurements
True-RMS or MEAN value detection mode can be selected
Low-pass filter for motor drive measurements
User calibration function
Complies with IEC 61010-1 CAT IV 600V , CAT III 1000V
Terminal shutter to prevent incorrect test leads' insertion in current terminals
Very wide operating temperature range from -10 to 55ºC
Large data internal memory 1,600 data (logging), 100 data (manual)
Download data and Live Monitoring on a PC via the USB interface

Detection mode	MEAN/Ture RMS (switch)
DC V	600.0mV/6.000/60.00/600.0/1000V (Input impedance: 10MΩ [600mV/60/600/1000V], 11MΩ [6V]) ±0.09%rdg±2dgt (Basic accuracy)
AC V [Ture RMS]	600.0mV/6.000/60.00/600.0/1000V (Input impedance: 10MΩ<200pF [600mV], 11MΩ<50pF [6V], 10MΩ<50pF [60/600/1000V]) ±0.5%rdg±5dgt (Basic accuracy)
AC V [MEAN]	600.0mV/6.000/60.00/600.0/1000V (Input impedance: 10MΩ<200pF [600mV], 11MΩ<50pF [6V], 10MΩ<50pF [60/600/1000V]) ±0.5%rdg±5dgt (Basic accuracy)
DC A	600.0/6000µA/60.00/440.0mA/6.000/10.00A ±0.2%rdg±2dgt (Basic accuracy)
AC A [Ture RMS]	600.0/6000µA/60.00/440.0mA/6.000/10.00A ±0.75%rdg±5dgt (Basic accuracy)
Ω	600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ ±0.4%rdg±1dgt (Basic accuracy)
Continuity buzzer	600.0Ω (The buzzer turns on at resistances lower than 50±30Ω)
Diode test	2.000V ±1%rdg±2dgt Open curcuit voltage: <3.5V (Approx. 0.5mA Measuring Current)
Capacitance	10.00/100.0nF/1.000/10.00/100.0/1000µF ±2%rdg±5dgt (Basic accuracy)
Frequency	10.00 - 99.99/90.0 - 999.9Hz/0.900 - 9.999/9.00 - 99.99kHz ±0.02%rdg±1dgt (Basic accuracy)
Temperature	-50 - 600ºC ±2%rdg±2ºC (with the use of K-type Temperature probe)
Other functions	Data Hold (D/H), Auto Hold (A/H), Range Hold (R/H), Maximum value (MAX) , Minimum value (MIN) , Average value (AVG) , Zero Adjustment (Capacitor, Resistance), Save to Memory , LCD backlight
Applicable standards	IEC 61010-1 CAT IV 600V / CAT III 1000V Pollution degree 2, IEC 61010-031, IEC 61326-1 (EMC)
Power source	R6 (1.5V)×4 (Auto power off: Approx. 20 minutes)
Dimension	192(L)×90(W)×49(D) mm
Weight	Approx. 560g (including batteries)

The Kyoritsu Digital Multimeter 1000V High Accuracy 1052 is a reliable and versatile tool for professionals who require accurate measurements in various electrical applications.
